Brand Name : YUEXIN
Place of Origin : Guangdong, China
Model Number : YX-IPX8-50AC-100L
MOQ : 1
Price : $9,999-10,799
Power supply : 220V 50Hz
Dimension : 950*650*1350mm
Weight : 85kg
Material : Stainless Steel 304
Control type : Button
Inner size : φ500*H500mm
External dimensions : L950*D780*H1350mm
Tank wall thickness : 4mm
Flange thickness : 18mm
Pressure control : Automatic adjustment
Pressure error : ±0.002 Mpa
Pressure display : 0.001Mpa
Test water depth : 0--50m
Pressure range : 0--0.5Mpa
Power : 0.1KW






Model | YX-IPX8-50AC-100L |
Inner Size | φ500*H500mm |
External dimensions | L950*D780*H1350mm |
Wall thickness of the Tank | 4mm |
Tank Material | 304 stainless steel material |
Flange thickness | 18mm |
Flange Material | 304 stainless steel material |
Equipment weight | About 85KG |
Pressure control mode | Automatic adjustment |
Pressure error value | ±0.002 Mpa |
Pressure display accuracy | 0.001Mpa |
Test water depth | 0—50m |
Pressure adjustment range | 0—0.5Mpa |
Exhaust pressure of the safety valve | 0.55Mpa |
Test time | 0-999min/h |
Air intake mode | Adjust the pressure regulating valve manually |
Voltage(V) | 220V |
Power(KW) | 0.1KW |
Standard | IEC60529:1989+A1:1999,GB4208,GB7000.(IPX8) |













|
|

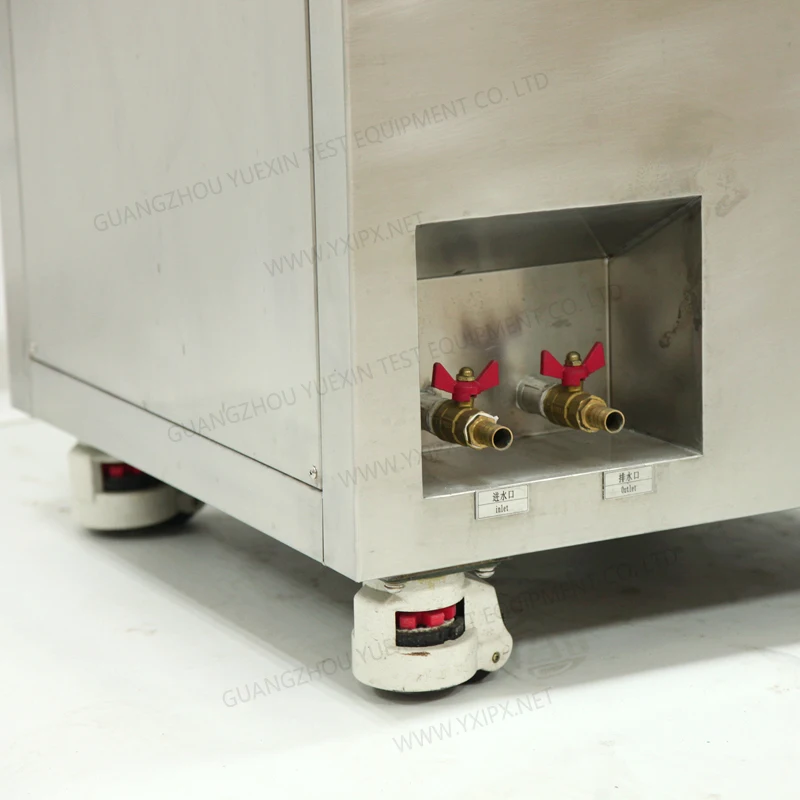

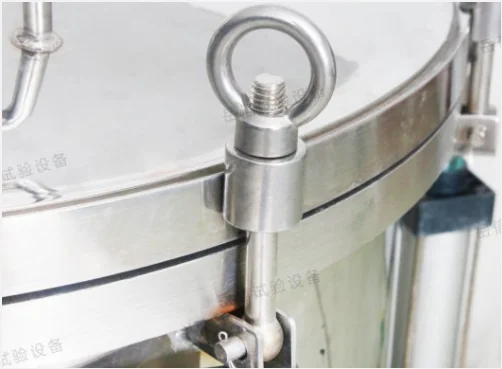

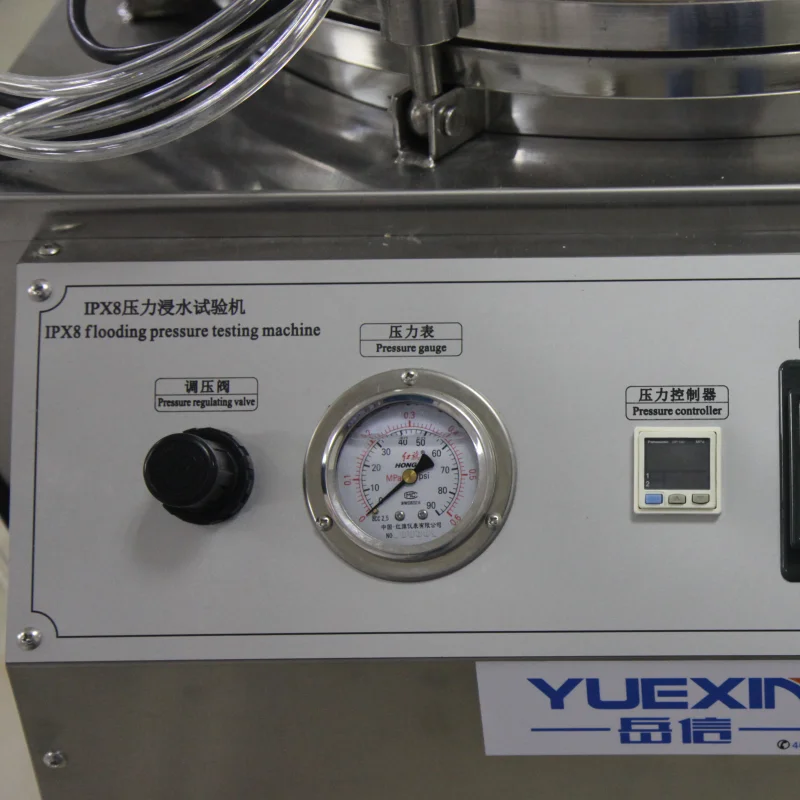

IPX8 Water Immersion Test Tank with ISO20653 Standard Automatic Pressure Control and Stainless Steel Flange Images |
